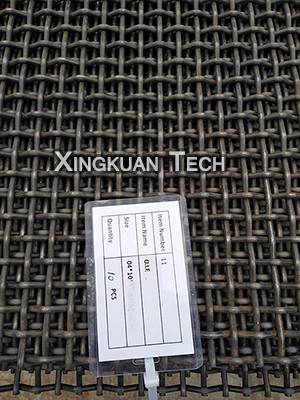

Mine & Quarry Screen Mesh

  • Material : 65Mn steel ,45# Black steel ,etc
  • Type : Machine Woven
  • Aperture : 1-100mm
  • Wire Diameter :0.5-12.5mm

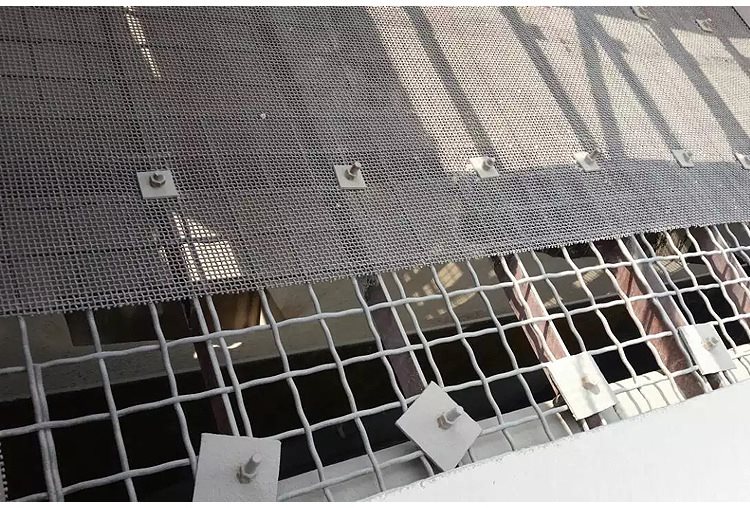

  • Description: Mine &Quarry screen mesh can be used as screen deck in quarry screen and crusher screen to separate and sort stone, sand, gravel, coal, rock and other materials.
  • INQUIRY   EMAIL

Mine& Quarry screen mesh is also called crusher screen mesh ,vibrating screen mesh and quarry mesh . It is made of spring steel wire (high carbon steel wire, medium carbon steel wire, manganese steel wire) and stainless steel wire. Screens with heavy duty coarse mesh are mostly used in quarries,which are designed to reduce the operating cost by effectively filtering, segregating and separating sand, gravel and quarry particles in a relatively short period of time.

Specifications :

Material : Manganese steel 65Mn,30Mn,45#,70#,72A,82B,carbon steel,stainless steel ,Polyurethane and galvanized mild steel.

Wire diameter : 0.5mm-12.5mm

Opening Size :0.45mm-100mm

width : 0.914m(3ft),1m,1.22m(4ft),1.5m(5ft), 2m(6ft), etc

Length : 2m in sheet (considering easy load by forklift) ,5.8m in sheet at largest (considering container size ) ,100m in roll

Weaving type: Double crimped, intermediate crimped, flat top crimped, lock crimped.

Hole shape: Square, rectangular slot, long slot.

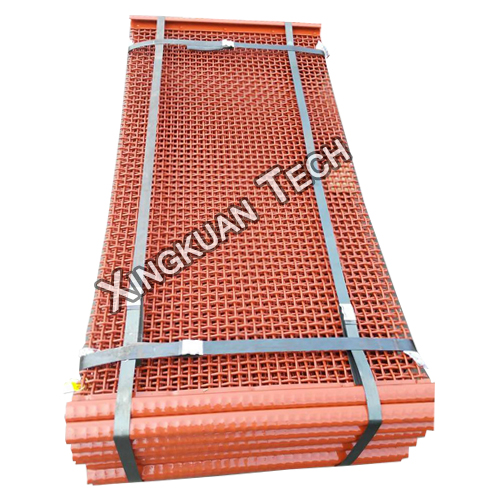

Surface treatment: Keep origional color , or painting color (red ,yellow green ,etc )
Edge preparation: Plain, bent, reinforced shroud, welded shroud, bolt shroud.

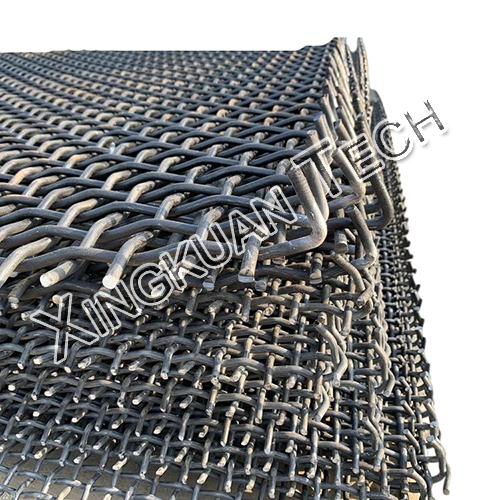

Hook type: C or U hook for 30° - 180

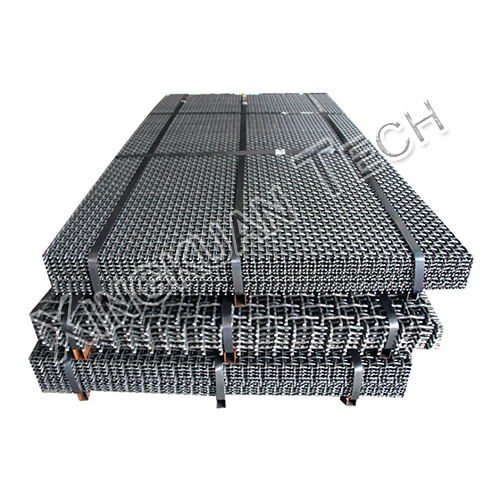

Packing shape : in sheet or roll

Aperture error: ≤3%,which is better than International Standards; Wire diameter error: ±3%;  Diagonal error: ≤9mm every 2m;

Item

No.

Aperture

Sq. Weave

mm

No.60#-GB Standard

Wire Dia

@kg/m2

No.1

3.0

1.8

9.50

No.2

4.0

2.0

9.40

No.3

5.0

2.0

8.00

No.4

5.0

2.5

11.70

No.5

5.6

2.5

11.70

No.6

6.3

2.5

10.00

No.7

7.1

2.5

9.10

No.8

6.0

3.0

14.00

No.9

8.0

3.5

14.90

No.10

9.0

3.5

13.80

No.11

10.0

4.0

16.00

No.12

11.0

4.0

15.00

No.13

12.0

4.0

14.10

No.14

15.0

4.5

14.60

No.15

16.0

5.0

16.70

No.16

18.0

5.0

15.30

No.17

20.0

6.0

19.40

No.18

22.0

6.0

18.10

No.19

23.0

6.0

17.40

No.20

25.0

6.0

16.30

No.21

27.0

7.0

20.20

No.22

30.0

7.0

18.60

No.23

35.0

7.5

18.60

No.24

45.0

9.0

21.00

No.25

50.0

9.0

19.30

No.26

70.0

10.0

17.60

No.27

80.0

10.0

15.60

No.28

90.0

12.0

19.80

No.29

100.0

12.0

18.10

Feature :

*The manganese steel is very abrasive and anti-corrosive. Stainless steel material is very corrosion resistant. Carbon steel is economic cost screening material.

* wearable resistance, high frequency and longer life.Manganese steel vibrating screen mesh is made of the high  tensile manganese steel, and the most widely used and common is 65Mn steel

*High abrasion and chemical corrosion resistance , excellent vibration and impact resistance

*large carrying capability,Large screening area

*Weaving technology is pre-crimp by two wire, it is very tight constructure , not easy to loose .

* Require less maintenance, easy to install

*Lower cost ,High temperature-proof,draw-proof and shake-proof

Application :

*Mining industry.

* Quarry.

* Aggregate processing industry.

* Chemical industry.

* Sand and gravel industry.

Different Aperture:

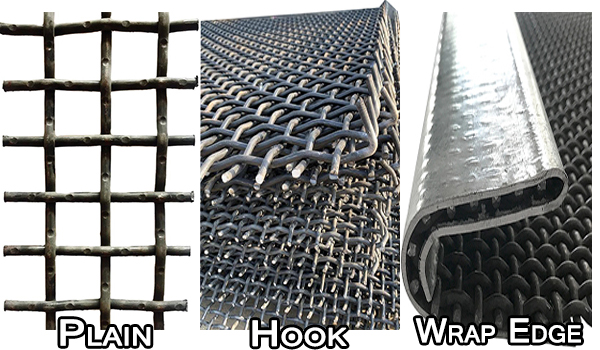

Different Edge :
