Specification
Material ; High Carbon Wire, Manganese Steel Wire, Stainless Steel Wire
Wire diameter : 1.2-8mm
Aperture :2.2-40mm
Hole Shape: rectangular , diamond ,triangular and wave .
Edge:Flat Panel, Hook Type,band sheet wraped edge
Aperture (mm) |
Wire Diameter(mm) |
kg/m2 |
Screening area% |
1.50 |
1.20-1.60 |
4.7-6.8 |
31-38 |
2.00 |
1.20-1.60 |
4.3-6.2 |
37-43 |
3.00 |
1.20-2.00 |
3.6-7.8 |
40-52 |
4.00 |
1.20-2.00 |
3.1-6.9 |
45-58 |
5.00 |
1.50-2.80 |
2.7-11 |
41-65 |
6.00 |
1.50-2.80 |
3.4-9 |
48-64 |
8.00 |
2.00-3.15 |
4.5-9.1 |
53-63 |
10.00 |
2.00-3.15 |
3.7-8.0 |
59-69 |
14.00 |
2.00-4.00 |
3.0-9.6 |
61-76 |
19.00 |
2.80-4.00 |
4.2-7.9 |
68-76 |
22.00 |
2.50-4.00 |
3.0-7.1 |
72-80 |
25.00 |
4.00-5.00 |
6.4-9.3 |
70-74 |
26.00 |
4.00-5.00 |
6.10-9.20 |
70-75 |
28.00 |
3.00-4.00 |
3.5-5.8 |
77-82 |
30.00 |
3.00-4.00 |
3.3-5.6 |
78-83 |
32.00 |
4.00 |
5.30 |
79 |
35.00 |
4.00-5.00 |
4.8-7.3 |
77-81 |
40.00 |
4.00 |
4.00 |
84 |
Anti blocking, save time of cleaning and unclogging the mesh
Maximizes screening efficiency ,30% higher than that of fixed mesh screen
More opening area
Wear resistance, high temperature
resistance, high toughness, earthquake resistance, tensile resistance,
no interference, and the screen permeability is better than that of
square hole mesh
Application
applies to vibrating screens for primary sieving of mine and aggregates, as well as asphalt mixer plant in road building.

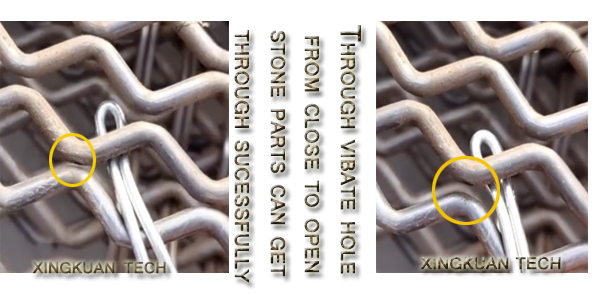

Working principle
through vibration of adjacent screen wire in random vibration to establish effective vibration difference.

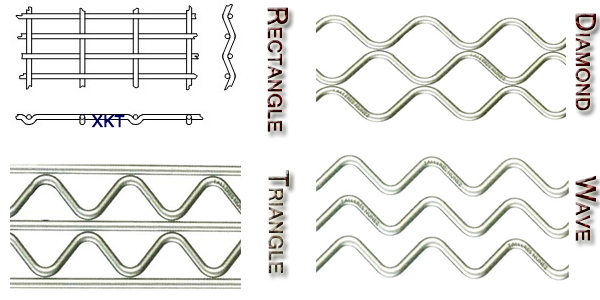

Different hole shape :

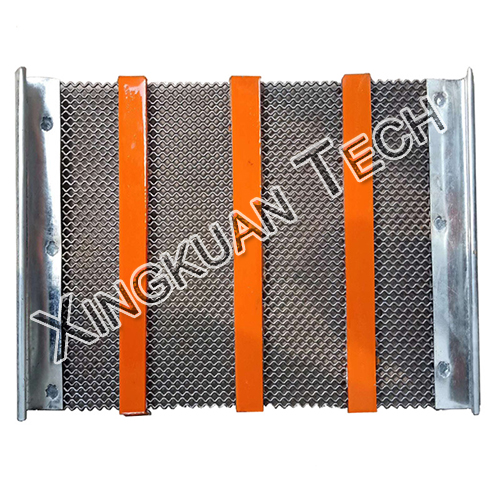

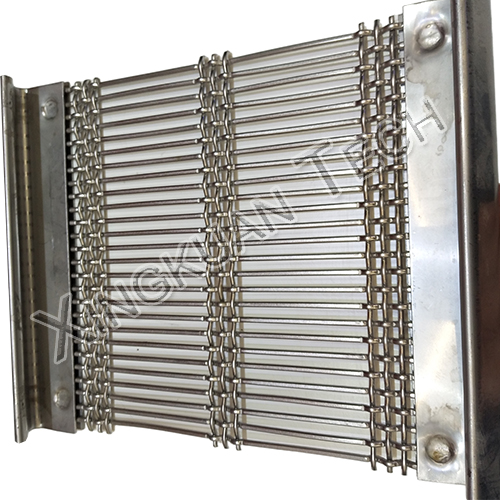

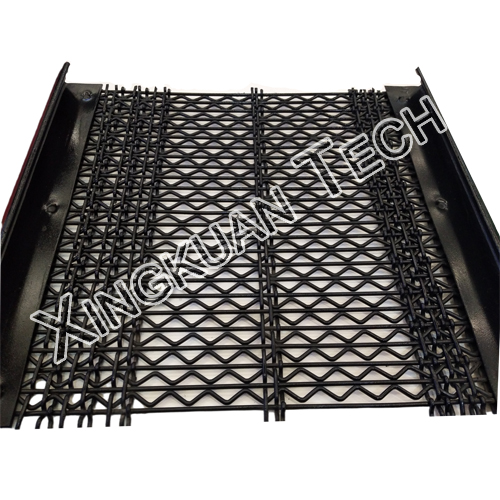

Different edge :
