FILTER DISC

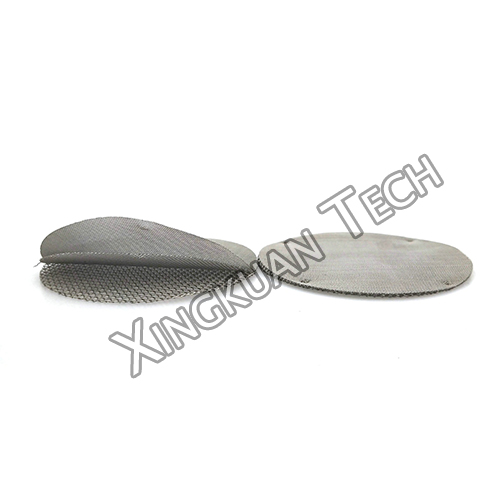

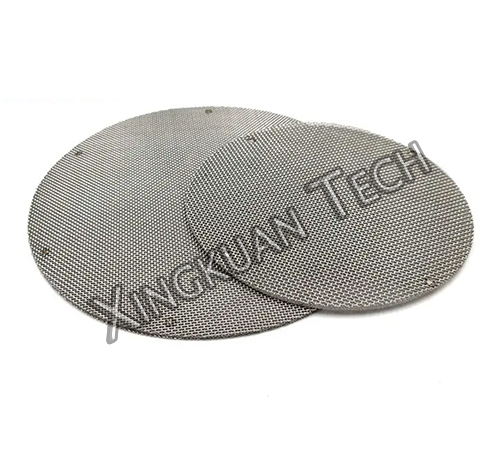

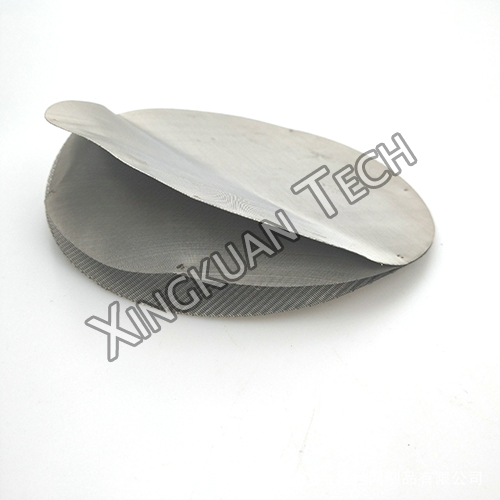

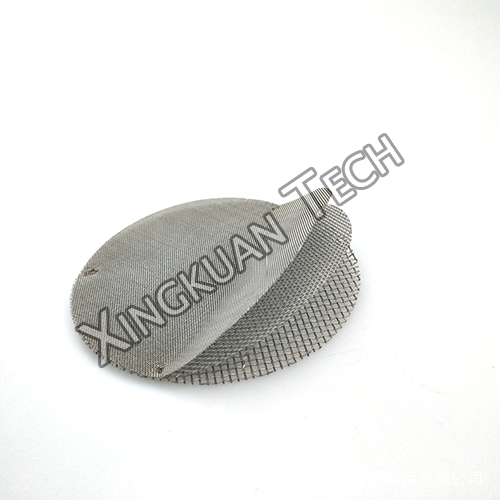

Multilayers Stainless Steel Wire Mesh welding Filter Disc

Material : stainess steel wire.
Mesh :10–650 mesh (hot sale size, 10,20 40 60,14x88,18x100,30x150 etc).
Layer: single layer or multilayers.
Application: screen mesh in plastic extruder machine
Description: Stainless steel wire mesh firstly is in roll and then be punching or laser cuting into round ,square , oval ,and other shapes, then spot welding or rimmed pack ,serve as the filter element of extrude
INQUIRY EMAIL

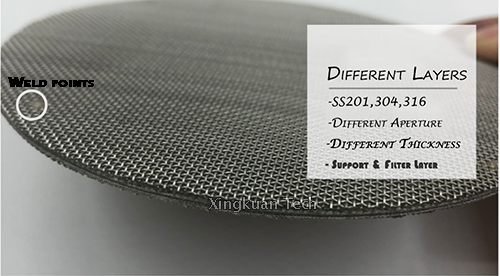

Multilayers Stainless Steel Wire Mesh welding Filter Disc is fabricated by different SS mesh ( mesh number , weaving type,etc ) in different layers ( support layer & filter layer ) through spot welding machine to weld together at precise points that avoid disturbing the polymer flow. The placement and number of spot welds can be customized for your individual process. Spot weld screen packs allow for better inventory control, improvements in process control and quality, and an ease in overall operation.

Specification:

Materials: stainless steel wire mesh ,type 201,304,316 ,etc
Weave style: plain weave, twill weave, herringbone weave, dutch weave.
Disc shape: round, rectangle, square, oval, circular, etc.
Layer: spot welding to fabricate several layers together . (2,3,4,5 layers , included support layers and filtration layers )
Quality :no burs , no mesh error , especially very firmed spot welding points .
Mesh: 10–650 mesh (hot sale size, 10,20 40 60,14x88,18x100,30x150 etc).
Wire diameter: 0.15mm - 0.60mm.

Mesh	Wire Dia. mm	Aperture Size mm	Open Area
10 X 10	0.711	1.829 MM	51.8
14 X 14	0.457	1.357 MM	55.9
16 X 16	0.457	1.131 MM	50.7
20 X 20	0.457	0.813 MM	41.0
24 X 24	0.376	0.682 MM	41.4
30 X 30	0.376	0.531 MM	34.2
30 X 30	0.310	0.536 MM	40.0
40 X 40	0.274	0.361 MM	32.3
50 X 50	0.193	0.335 MM	43.6
60 X 60	0.193	0.230 MM	29.8
80 X 80	0.122	0.196 MM	37.9
100 X 100	0.102	0.152 MM	36.0
120 X 120	0.091	0.120 MM	31.8
150 X 150	0.071	0.088 MM	29.6
200 X 200	0.050	0.077 MM	36.76
300 X 300	0.040	0.045 MM	27.83
325 X 325	0.035	0.043 MM	30.49
400 X 400	0.028	0.036 MM	31.25

Weaving Type	Mesh counting	Absolute micron rating	Nominal micron rating
Plain Dutch	12X64	270-290	200
Plain Dutch	14X88	220-240	150
Plain Dutch	16X80	225-235	140
Plain Dutch	24X110	115-125	80
Plain Dutch	30X150	110-112	63
Plain Dutch	40X200	70-75	55
Plain Dutch	50X250	58-63	40
Plain Dutch	80X400	40-45	35
Twill Dutch	30X250	110-120	53
Twill Dutch	80X700	35-40	25
Twill Dutch	120X400	50-55	40
Twill Dutch	165X800	25-28	15
Twill Dutch	200X600	30	20
Twill Dutch	165X1400	16-20	10
Twill Dutch	200X1400	12-14	5

Applictions :

Multilayers spot welded extruder filter mesh screen are widely applied on PC, PP, PE, PS, HIPS, PET, PVC and other plastic sheet extruder, the membrane machine, granulator, and nonwoven fabrics, color masterbatch, filler, leather chemical fiber extruder, etc.
